INNOV-AI

> Start the server
> (or start the server for the first time (embedded mode - H2 Database))
> (or start the server for the first time (remote mode - MySQL 8 Database))
> Open the MentDB Weak Editor

Click on the ETL button...

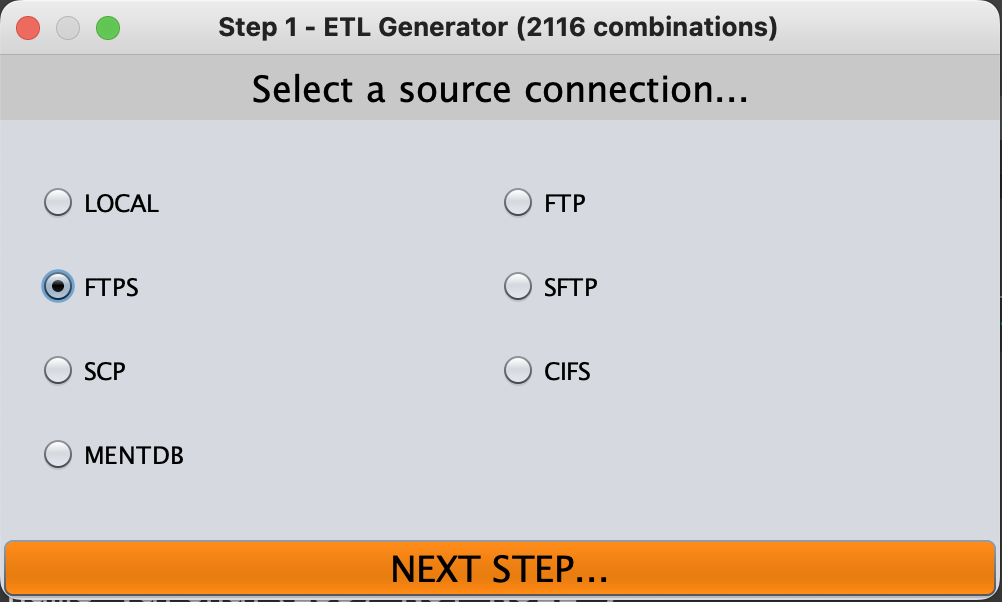

Select the source connection ...

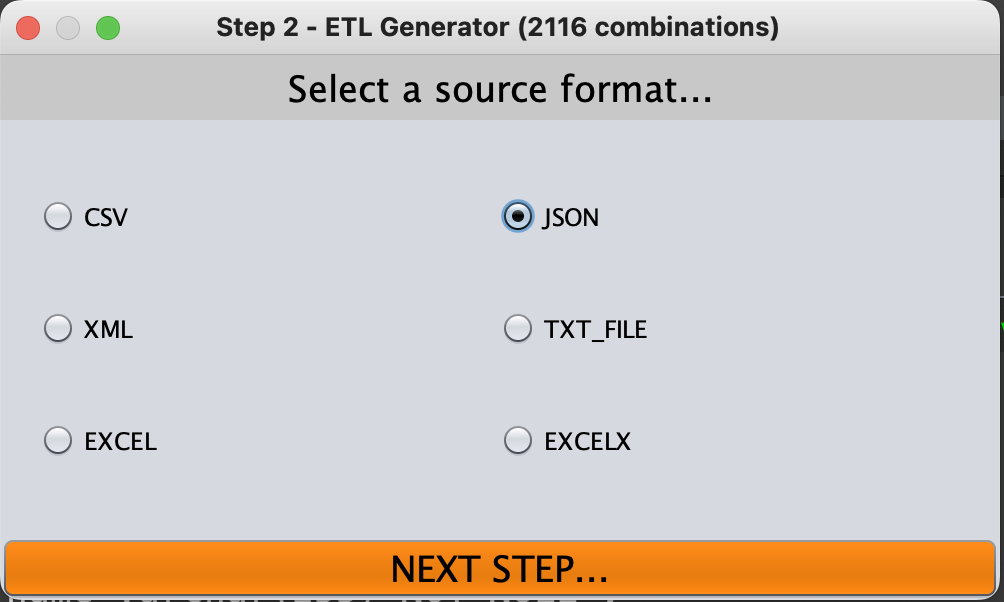

Select the source file format ...

Select the destination connection ...

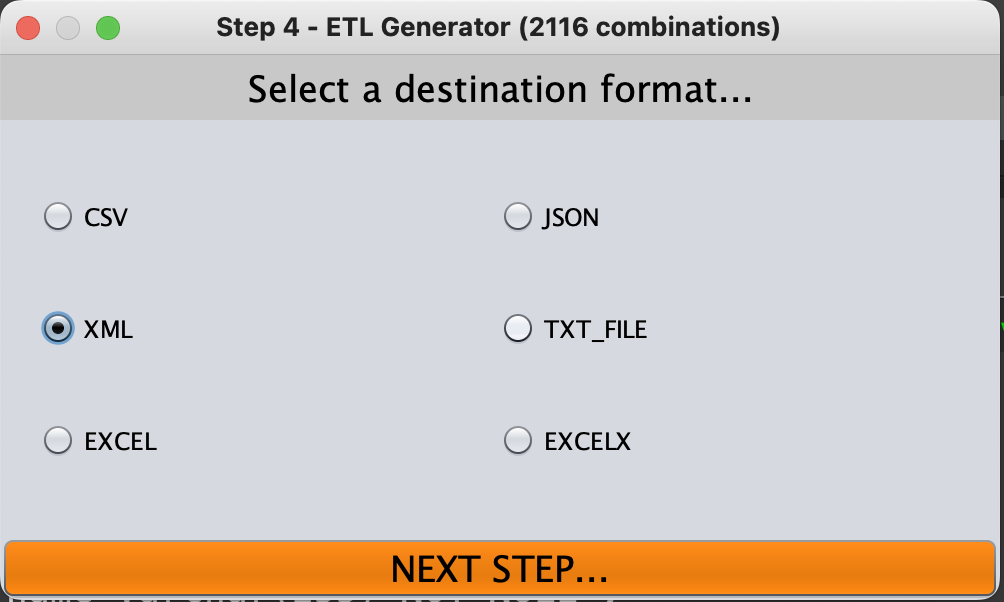

Select the destination file format ...

    Copy
  ###############################################;
# GENERATED ETL SCRIPT - YOU MUST UPDATE IT... ;
###############################################;

if (not (group exist "0001_folder1_folder2_folder3")) {
	group add "0001_folder1_folder2_folder3";
};

script merge "folder1.folder2.folder3.step_1_source_connect.exe" true 5

  (param
  )
  "Connect to the source"
{

	# CONFIGURATION ;
	-> "[CONF_NAME_OF_THE_FLOW]" "name_of_the_flow";
	-> "[CONF_SOURCE_CM]" "demo_cm";

	# INITIALIZATION ;
	-> "[FLOW_PID]" [PID];

	# HANDLE ;
	try {

		# Flow initialization;
		stack flow_init [FLOW_PID] [CONF_NAME_OF_THE_FLOW] "{}";
		stack flow_step [FLOW_PID] 1 "source_connect...";

		ftps connect "session_remote" {cm get [CONF_SOURCE_CM];};

		#Step 1 is valid;
		stack flow_step [FLOW_PID] 1 "source_connect_ok";

		include "folder1.folder2.folder3.step_2_extract.exe";

	} {

		try {ftps disconnect "session_remote";} {} "[err]";

		#Step 1 is not valid;
		stack flow_step [FLOW_PID] 1 "source_connect_KO";

		# Give the error to the stack and stop the process;
		exception (1) ([global_err]);

	} "[global_err]";

} "Return nothing";
if (not (group is granted script "folder1.folder2.folder3.step_1_source_connect.exe" "0001_folder1_folder2_folder3")) {
	group grant script "folder1.folder2.folder3.step_1_source_connect.exe" "0001_folder1_folder2_folder3";
};

script merge "folder1.folder2.folder3.step_2_extract.exe" true 1

  (param
  )
  "Extract files from the source"
{

	# CONFIGURATION ;
	-> "[CONF_DIR_SOURCE]" "tmp/source";
	-> "[CONF_SOURCE_FILTER]" ".*json";

	# HANDLE ;
	try {

		# Mark the flow as step 2;
		stack flow_step [FLOW_PID] 2 "extract...";

		# Create the local directory PID;
		file mkdir (concat "home/" [FLOW_PID]);

		# Get files into PID directory;
		log write (concat "Get files from '" [CONF_DIR_SOURCE] "/" [CONF_SOURCE_FILTER] "'.") OK null null;
		ftps cd "session_remote" [CONF_DIR_SOURCE];
		json load "valid_files" (ftps ls "session_remote" [CONF_SOURCE_FILTER]);
		json parse_array "valid_files" "/" "obj" {

			-> "[filename]" (json select "obj" /name);
			ftps get "session_remote" [filename] (concat "home/" [FLOW_PID] "/" [filename]);
			log write (concat "Get file 'home/" [FLOW_PID] "/" [filename] "'.") OK null null;

		};

		# Delete source file;
		json parse_array "valid_files" "/" "obj" {

			-> "[filename]" (json select "obj" /name);
			ftps rm "session_remote" [filename];
			log write (concat "Remove source file '" [CONF_DIR_SOURCE] "/" [filename] "'.") OK null null;

		};

	} {

		try {ftps disconnect "session_remote";} {} "[err]";

		#Step 2 is not valid;
		stack flow_step [FLOW_PID] 2 "extract_KO";

		# Give the error to the stack and stop the process;
		exception (1) ([global_err]);

	} "[global_err]";

	log write (concat (json count "valid_files" /) " file(s) to transform.") OK null null;

	if (> (json count "valid_files" /) 0) {

		#Step 2 is valid;
		stack flow_step [FLOW_PID] 2 (concat "extract_ok_" (json count "valid_files" /) "_files");

		json parse_array "valid_files" "/" "obj" {

			-> "[filename]" (json select "obj" /name);

			stack (date now) "folder1.folder2.folder3.step_3_transform.exe" "[FLOW_PID]" [FLOW_PID] "[filename]" [filename];

		};

	} {

		#Step 2 is valid;
		stack flow_step [FLOW_PID] 2 "extract_ok_zero_file";

		# No file into the directory;
		file delete (concat "home/" [FLOW_PID]);

	};

} "Return nothing";
if (not (group is granted script "folder1.folder2.folder3.step_2_extract.exe" "0001_folder1_folder2_folder3")) {
	group grant script "folder1.folder2.folder3.step_2_extract.exe" "0001_folder1_folder2_folder3";
};

script merge "folder1.folder2.folder3.step_3_transform.exe" true 1

  (param
  	(var "[FLOW_PID]" {true} "The flow PID" is_null:true is_empty:true "1")
  	(var "[filename]" {true} "The filename" is_null:true is_empty:true "file.xxx")
  )
  "Transform the file"
{

	# CONFIGURATION ;
	-> "[CONF_DESTINATION_NEW_FILENAME]" (concat "new_filename_" (date systimestamp_min) ".xml");

	# HANDLE ;
	try {

		# Mark the flow as step 3;
		stack flow_step [FLOW_PID] 3 "transform...";

		xml load "flow" "<data></data>";

		log write (concat "Build the file 'home/" [FLOW_PID] "/" [CONF_DESTINATION_NEW_FILENAME] "' from 'home/" [FLOW_PID] "/" [filename] "'...") OK null null;

		json load "flow_source" (file load (concat "home/" [FLOW_PID] "/" [filename]));

		# BEGIN METHOD 1;
		-> "[T_A]" "";
		-> "[T_B]" "";
		-> "[T_C]" "";
		json parse_obj "flow_source" "/" "[key]" "[val]" {

			-> (concat "[T_" [key] "]") [val];

		};

		xml inode "flow" "/data" "<row><A></A><B></B><C></C></row>";
		xml utext "flow" (concat "/data/row[" 1 "]/A") [T_A];
		xml utext "flow" (concat "/data/row[" 1 "]/B") [T_B];
		xml utext "flow" (concat "/data/row[" 1 "]/C") [T_C];
		# END METHOD 1;

		# BEGIN METHOD 2;
		-> "[index]" 1;
		json parse_array "flow_source" "/" "row" {

			-> "[T_A]" (json select "row" /A);
			-> "[T_B]" (json select "row" /B);
			-> "[T_C]" (json select "row" /C);

			xml inode "flow" "/data" "<row><A></A><B></B><C></C></row>";
			xml utext "flow" (concat "/data/row[" [index] "]/A") [T_A];
			xml utext "flow" (concat "/data/row[" [index] "]/B") [T_B];
			xml utext "flow" (concat "/data/row[" [index] "]/C") [T_C];

			++ "[index]";

		};
		# END METHOD 2;

		file create (concat "home/" [FLOW_PID] "/" [CONF_DESTINATION_NEW_FILENAME]) (xml doc "flow");
		xml unload "flow";

		log write (concat "Builded.") OK null null;

		#Step 3 is valid;
		stack flow_step [FLOW_PID] 3 "transform_ok";

		stack (date now) "folder1.folder2.folder3.step_4_destination_connect.exe" "[FLOW_PID]" [FLOW_PID] "[filename]" [CONF_DESTINATION_NEW_FILENAME];

	} {

		try {xml unload "flow";} {} "[err]";

		#Step 3 is not valid;
		stack flow_step [FLOW_PID] 3 "transform_KO";

		# Give the error to the stack and stop the process;
		exception (1) ([global_err]);

	} "[global_err]";

} "Return nothing";
if (not (group is granted script "folder1.folder2.folder3.step_3_transform.exe" "0001_folder1_folder2_folder3")) {
	group grant script "folder1.folder2.folder3.step_3_transform.exe" "0001_folder1_folder2_folder3";
};

script merge "folder1.folder2.folder3.step_4_destination_connect.exe" true 5

  (param
  	(var "[FLOW_PID]" {true} "The flow PID" is_null:true is_empty:true "1")
  	(var "[filename]" {true} "The filename" is_null:true is_empty:true "file.xxx")
  )
  "Connect to the destination"
{

	# CONFIGURATION ;
	-> "[CONF_DESTINATION_CM]" "demo_cm";

	# HANDLE ;
	try {

		# Flow initialization;
		stack flow_step [FLOW_PID] 4 "destination_connect...";

		ssh connect "destination_sess" {cm get [CONF_DESTINATION_CM];};

		#Step 4 is valid;
		stack flow_step [FLOW_PID] 4 "destination_connect_ok";

		include "folder1.folder2.folder3.step_5_load.exe";

	} {

		try {ssh disconnect "destination_sess";} {} "[err]";

		#Step 4 is not valid;
		stack flow_step [FLOW_PID] 4 "destination_connect_KO";

		# Give the error to the stack and stop the process;
		exception (1) ([global_err]);

	} "[global_err]";

} "Return nothing";
if (not (group is granted script "folder1.folder2.folder3.step_4_destination_connect.exe" "0001_folder1_folder2_folder3")) {
	group grant script "folder1.folder2.folder3.step_4_destination_connect.exe" "0001_folder1_folder2_folder3";
};

script merge "folder1.folder2.folder3.step_5_load.exe" true 1

  (param
  )
  "Load file to the destination"
{

	# CONFIGURATION ;
	-> "[CONF_DIR_DESTINATION]" "/remote/dir";

	# HANDLE ;
	try {

		# Mark the flow as step 5;
		stack flow_step [FLOW_PID] 5 "load...";

		log write (concat "Send '" (concat "home/" [FLOW_PID] "/" [filename]) "' to '" (concat [CONF_DIR_DESTINATION] "/" [filename]) "' ...") OK null null;

		# Send file into the destination directory;
		ssh scp to "destination_sess" (concat "home/" [FLOW_PID] "/" [filename]) (concat [CONF_DIR_DESTINATION] "/" [filename]);

		log write "Sended." OK null null;

		ssh disconnect "destination_sess";

		#Step 5 is valid;
		stack flow_step [FLOW_PID] 5 "load_ok";

	} {

		try {ssh disconnect "destination_sess";} {} "[err]";

		#Step 5 is not valid;
		stack flow_step [FLOW_PID] 5 "load_KO";

		# Give the error to the stack and stop the process;
		exception (1) ([global_err]);

	} "[global_err]";

} "Return nothing";
if (not (group is granted script "folder1.folder2.folder3.step_5_load.exe" "0001_folder1_folder2_folder3")) {
	group grant script "folder1.folder2.folder3.step_5_load.exe" "0001_folder1_folder2_folder3";
};

Here all ETL samples : Click here ...
